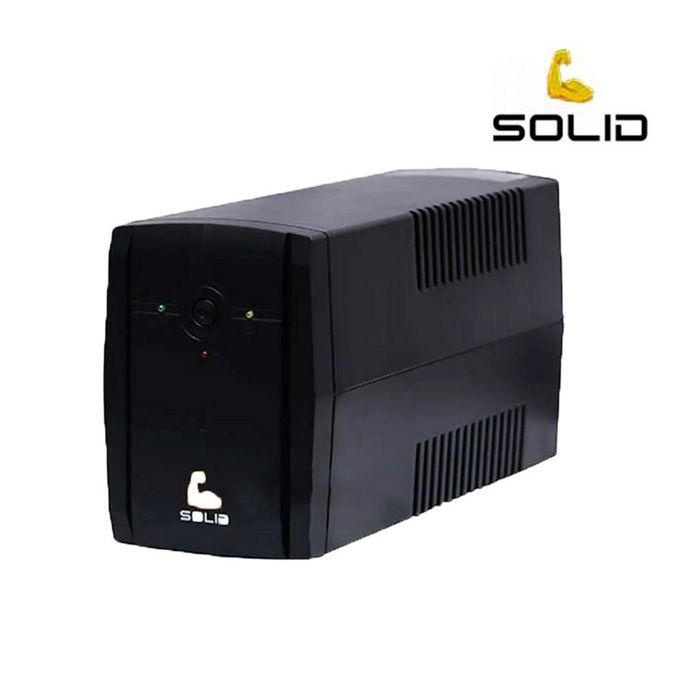

Solid Brand UPS Power Saver 1000VA

General Features:

• Model: SOLID 1000VA UPS
• Capacity: 1000VA / 600W
• Topology: Line-interactive

Input:

• Voltage: 220/230/240V AC
• Voltage Range: 162-290V AC
• Frequency: 50/60Hz (auto-sensing)

Output:

• Voltage: 220/230/240V AC
• Voltage Regulation (Battery Mode): ±10%
• Frequency: 50/60Hz ±1Hz
• Waveform: Simulated sine wave
• Transfer Time: Typical 2-6 ms

Battery:

• Type: Sealed, maintenance-free lead-acid battery
• Number of Batteries: Typically 1 or 2, depending on design
• Battery Voltage: 12V
• Capacity: 7Ah or 9Ah (common capacities)
• Recharge Time: 4-6 hours to 90% capacity

Protection:

• Surge Protection: Yes
• Overload Protection: Yes
• Short Circuit Protection: Yes
• Over-Discharge Protection: Yes

Indicators and Alarms:

• LED Indicators: Power On, Battery Mode, Low Battery, Fault
• Audible Alarms: Battery Mode, Low Battery, Overload, Fault

Physical:

• Dimensions: Approx. 320 x 130 x 180 mm (varies by model)
• Weight: Approx. 7-10 kg (varies by model)
• Form Factor: Tower

Environmental:

• Operating Temperature: 0°C to 40°C
• Storage Temperature: -15°C to 45°C
• Humidity: 0-90% non-condensing

Interfaces:

• Communication Port: USB/Serial (varies by model)
• Management Software: Included (varies by model, often provides monitoring and control capabilities)

Additional Features:

• USB Charging Port: Optional, depends on model
• LCD Display: Optional, provides real-time status and information
• Cooling: Fan-cooled for reliable performance
